MODcol® Spring® Columns for LC


With and Without Water-Jacked
Available in:

101 x 400mm Hardware

- Max. packed bed volume:1800ml

- Max. packed bed length: 225mm

- Max. operating pressure:

  • ·Packing: 138bar / 2000psig
  • ·LC Operation: 138bar / 2000psig

- Max. operating temperature:

  • ·Packing:15°C - 30°C
  • ·LC Operation:4°C - 60˚C

101 x 700mm Hardware

- Max. packed bed volume:3600ml

- Max. packed bed length: 450mm

- Max. operating pressure:

  • ·Packing: 138bar / 2000psig
  • ·LC Operation: 138bar / 2000psig

- Max. operating temperature:

  • ·Packing:15°C - 30°C
  • ·SFC Operation:4°C - 60˚C


PED 97/23/EC
Pressure Equipment Classification:
- Vessel as per Article 3, Section 1.1 (a), first and second indent
Operating Fluids: Fluid Group 1 + 2
F.D.A. Approved Materials



Safty Transport System

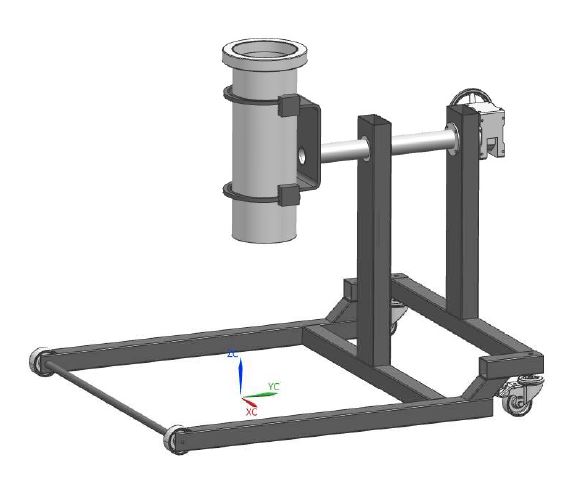

Column Holder
Available in:

Mobile column holder for 50 mm and 101 mm iD Columns
